PVC Sheath Red Cat 7 Lan Cable For Analog And Data Video High Strength

Name: PVC Sheath Red Cat 7 Lan Cable For Analog And Data Video High Strength
Brand: BLG / OEM / ODM
Price: 1 USD

Best PVC Sheath Red Cat 7 Lan Cable For Analog And Data Video High Strength wholesale

Brand Name : BLG / OEM / ODM

Model Number : CAT7 LAN CABLE

Certification : CE / ROHS / ISO

Place of Origin : CHINA

MOQ : 100 Rolls

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 3000 Rolls per Week

Delivery Time : 10 - 15 Work Days

Packaging Details : 305M / Roll / Easy Pull Box, 2 Boxes / Carton

Conductor Material : Oxygen Free Copper (OFC)

Conductor Type : Solid or Stranded

Insulation : Skin - foam - Skin

Shield 1 : Al Foil Pair Shielded

Shield : Al - Mg Braid Shielded

Sheath : PVC / LSZH

Contact Now

LSZH PVC S - FTP Cat 7 Ethernet Cable Twisted Pair Shield Wooden Reel Packing

CAT7 LAN cable for structured premise cabling transmits voice and video signals.
Supporting current high-band with applications, performance of up to 350- 600MHz.
Especially suitable to class F solution such as Ethernet, Fast Ethernet, Gigabit Ethernet, ATM 155, ATM622, ATM1200.

SPECIFICATION of Cat7 LAN Cable

1) CONDUCTOR

Raw material of the conductor: Oxygen Free Copper
Conductor Diameter: 26AWG / 24AWG

2) INSULATION

Raw material of the conductor: Skin - foam - Skin
Quantity: 4 twisted pairs

Blue / white - blue; Green / white - green;
Orange / white - green; Brown / white - brown;

Insulation Diameter: 1.35 ± 0.005mm
Average thickness: 0.02245 mm
Minimum point thickness: 0.2220mm

3) 4 Pairs Shielded by Al Foil

4) DRAIN WIRE: O.D. 0.40mm CCS

5) OVERALL SCREEN: Al - Mg Braiding

6) RIP CORD

7) SHEATH

Sheath material: PVC / LSZH
Nominal Diameter: 7.70 ± 0.2mm
Average thickness: 0.55mm
Minimum point thickness: 0.5mm

Description:

Rated Temperature: 60°C, 75°C, 90°C
Solid Bare Copper Conductor
PVC / LSZH Jacket, RoHS Compliant
Comply to IEC61156 - 5, EN50173 & ISO 11801
Operating Temperature: - 30°C ~ + 50°C
Minimum Bending Radius: 8D

Product Type:	Cat7 LAN Cable
Structure	2 * 4 Pair Conductor + Insulation + Rip cord + Shield + Drain wire + Jacket
Conductor Material	OFC
Conductor Size:	23AWG (0.58mm ± 0.01mm)
Number of pairs: 4 pairs	Pair1: Orange / White Orange
	Pair2: Blue / White Blue
	Pair3: Green / White Green
	Pair4: Brown / White Brown
Insulation Material	HDPE
Rip cord	Nylon
Shield	Pair Shield + Overall Screen Braid
Jacket material	PVC
Flammability Grade:	CMX / CM
Jacket Thickness	0.55mm
Jacket Color	Grey / White / Blue / Yellow / Green ..... As customer requirements

Electrical Characteristics:

Frequency (MHz)	Impedance (Ohm)	Return Loss (≥dB)	Attenuation (≤dB/100m)	NEXT (≥dB/100m)	PS - NEXT (≥dB/100m)	ELFEXT (≥dB/100m)	PS - ELFEXT (≥dB/100m)
Frequency (MHz)	Impedance (Ohm)	Return Loss (≥dB)	Attenuation (≤dB/100m)	NEXT (≥dB/100m)	PS - NEXT (≥dB/100m)	ELFEXT (≥dB/100m)	PS - ELFEXT (≥dB/100m)
1	100±15	20.00	-	78.00	75.00	78.00	75.00
4		23.00	3.74	78.00	75.00	78.00	75.00
8		24.50	5.24	78.00	75.00	75.90	72.90
10		25.00	5.86	78.00	75.00	74.00	71.00
16		25.00	7.41	78.00	75.00	69.90	66.00
20		25.00	8.29	78.00	75.00	68.00	65.00
25		24.30	9.29	78.00	75.00	66.00	63.00
31.25		23.60	10.41	78.00	75.00	64.10	61.10
62.5		21.50	14.88	75.50	72.40	58.10	55.10
100		20.10	19.02	72.40	69.40	54.00	51.00
150		18.90	23.56	69.80	66.80	50.20	47.20
200	100±22	18.00	27.74	67.80	64.90	48.00	45.00
250	100±22	17.30	30.97	66.40	63.40	46.00	43.00
300	100±25	17.30	34.19	65.20	62.20	44.50	41.50
600	100±25	17.30	50.10	60.70	57.70	38.40	35.40

Applications:

VoIP
ISDN
Token
100M TP - PDM
Analog and Data Video
TR - 16 Active and Passive
155M / 522M / 1.2GATM
IEEE802.3: 10 Base - T; 100 Base - T; 1000 Base - T; 10G Base - T

Packaging details:
1. Inner Packing: 305 meters / roll / box, 2 boxes / carton
2. Outer Packing: 2 boxes / carton
3. Other Packing: 500 meters / wooden reel or as requests

Delivery time:
As for one 40'HQ container, we can finish them 10 - 15 days after receiving the deposit and we usually complete the order within 7 - 15 days. It also depends on the items and the order quantities.

Payment terms:
1) L / C at sight
2) T / T: 30% deposit by T / T, 70% balance by T / T before shipment
3) Western Union: 30% deposit, 70% balance before shipment

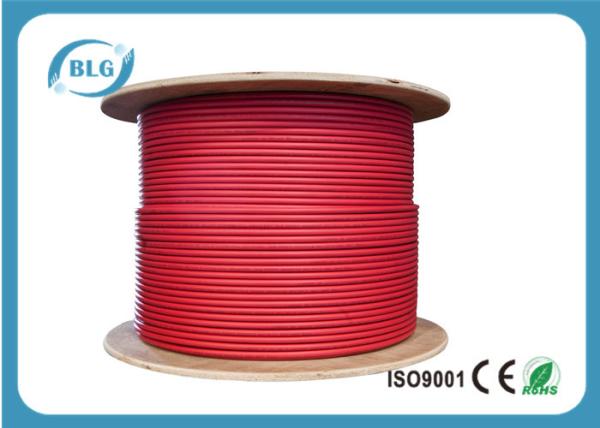

PVC Sheath Red Cat 7 Lan Cable For Analog And Data Video High Strength
